Monthly Archives: January 2015

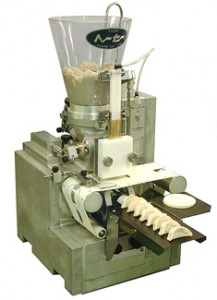

NS-21 Semi Automatic Gyoza Forming Machine

Leave a reply

TOSEI NS-21

TOSEI NS-21

TOSEI NS-21

  • Placing each dough sheet enables the machine to work consecutively.
  • The operation is easy and user-friendly.
  • Any size can be changed by replacing optional parts.
  • The portions that touch the surface of a dough sheet are always kept clean, because they are easy to be dismantled and washable.
  • The minimum adjustment of ingredients is easy and simple.
  • The maintenance and inspection needs no special work because of its compact body configuration.

Specification:
Capacity:1,200pcs/h
Power supply:Single Phase 100V,80W
Product Weight:15-35g

Dimension:

L(Total Length) 705(mm)
W(Total Width) 395(mm)
H(Total Height:) 790(mm)
Machine Weight: 60kg
Handling

Handling

Dimension

Dimension

TOW-120 Automatic Siomai Machine

Leave a reply

TOSEI TOW-120

TOSEI TOW-120

TOSEI TOW-120

  • EASY OPERATION : Only put filling to filler hopper & put mixing dough to upper hopper.
  • TOPPING: Auto put on the top of each Siomai
  • OPTION: Connect to tray filling machine or line up machine.
  • OPTION: Connect to tray filling machine or line up machine.

Specification:
Capacity: 5,000-6,000pcs/hour
Power supply: 3-phase 200V, 1.35kw
Weight: 550g

Dimension:

L(Total Length) 1,350(mm)
W(Total Width) 915(mm)
H(Total Height) 1,835(mm)
Machine Weight 550kg



SS-21 SIOMAI Semi Automatic Machine

Leave a reply
TOSEI SS-21

TOSEI SS-21

  • Placing each dough sheet enable the machine to work consecutively.
  • The operation is easy and user-friendly
  • Either square or round shape of a dough sheet is available.
  • Any size can be changed by replacing optional parts.
  • The portions that touch the surface of a dough sheet are always kept clean, because they are easy to be dismantled and washable.
  • The minimum adjustment of ingredients is easy and simple.
  • The maintenance and inspection needs no special work because of its compact body configuration.

Specification
Capacity: 1,000pcs/hour
Power supply: 100V, 85W
Product Weight: 10-40g

Dimension

L(Total Length) 640(mm)
W(Total Width) 395(mm)
H(Total Height) 765(mm)
Machine Weight 60kg

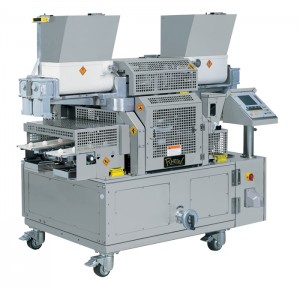

WN055

Leave a reply
Rheon

WN055

Rheon Cornucopia
WN055

Technical data

Produch weight: 20 ? 120 g
Capacity: MAX. 200 pcs/min
and/or 360 kg/hour
Belt speed: 0 ? 37 m/min
Product length: MAX. 500 mm
Hopper capacity: 40 liter x 2

Width: 1735 mm
Depth: 980 mm
Height: 1523 mm
Weight: 750  kg
Electrical capacity: 4,3 kW

Optimal high range capacity equipment to bakeries and food industries. For example: plum knodel, , duck breast filled with cheese, filled bagel etc.

VIDEO

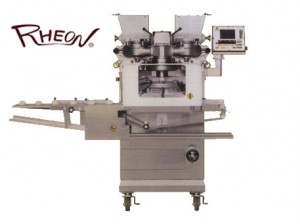

KN550

Leave a reply
KN550

KN550



Rheon Cornucopia
KN550

Technical data

Product weight: 10 ? 300 g
Capacity: 10-90 pcs/min
and/or 400 kg/hour
Belt speed: 1,3 ? 22 m/min
Product length: 0-500 mm
Hopper capacity: 20 liter

Width: 1757 mm
Depth: 955 mm
Height: 1383 mm
Weight: 520  kg
Electrical capacity: 3,2 kW

Optimal middle range capacity equipment to bakeries and food industries.
For example: SIOPAO, plum knodel, , duck breast filled with cheese, filled bagel etc.

VIDEO

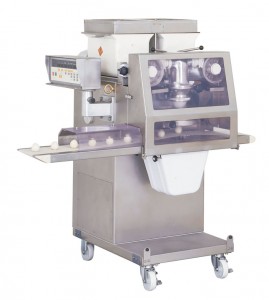

KN171

Leave a reply
KN-171

Minami

Rheon Cornucopia
KN171

Technical data

Product weight: 10 ? 80 g
Capacity: 20-100 pcs/min
and/or 180 kg/hour
Belt speed:  ?
Hopper capacity: 15 liter

Width: 1576 mm
Depth: 874 mm
Height: 1360 mm
Weight: 270  kg
Electrical capacity: 0,89 kW

Optimal equipment to confectioneries. For example: filled marzipan, mosaic cake, filled gingerbread etc.

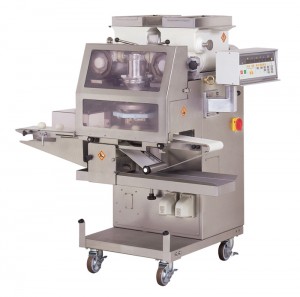

KN135

Leave a reply

KN-135


Rheon Cornucopia
KN135

Technical data

Product weigth: 10 ? 250 g
Capacity: 20-100 pcs/min
and/or 280 kg/hour
Belt speed: 2 ? 35 m/min
Hopper capacity: 15 liter

Width: 1610 mm
Depth: 890 mm
Height: 1316 mm
Weight: 270  kg
electrical capacity: 1,29 kW

Optimal equipment to confectioneries, bakeries. For example: open top pizza, plum knodel, filled finger foods etc.

Video
